DCB-1 · Comprehensive Basic Cabinet

It is applicable to high-heat areas in the working environment of ordinary buildings. It can automatically adjust cooling supply through cabinet-mounted rack air conditioners or heat dissipation systems, ensure the normal operation of IT equipment, and meet the requirements of regional distributed deployment.

Demand for centralized multi-level management. It features excellent scalability, supports master-slave cabinet combination solutions such as 1+1 and 1+2, and adopts a modular design to meet the online capacity expansion needs of small data centers.

DCB-1 · Comprehensive Basic Cabinet

◆ Material: High-quality cold-rolled steel
◆ Dimensions: 600×1200×2000
◆ Color: Black
◆ Structure: The cabinet main body adopts a "G"-shaped frame structure with high load-bearing capacity
◆ Protection Level: P20

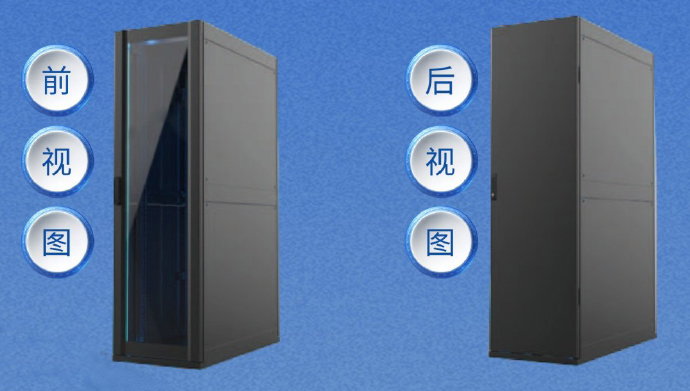

◆ Door Panel: The front door features a metal frame with an embedded glass door, and the rear door is a steel plate door, controlled by a mechanical door lock
◆ Load-bearing Capacity: 1800KG

• Integrated Design The factory completes integrated prefabrication, pre-installation and pre-commissioning, enabling rapid on-site assembly.
• Integrated Design and Delivery Adopt overall design and one-stop delivery to avoid problems in system design.

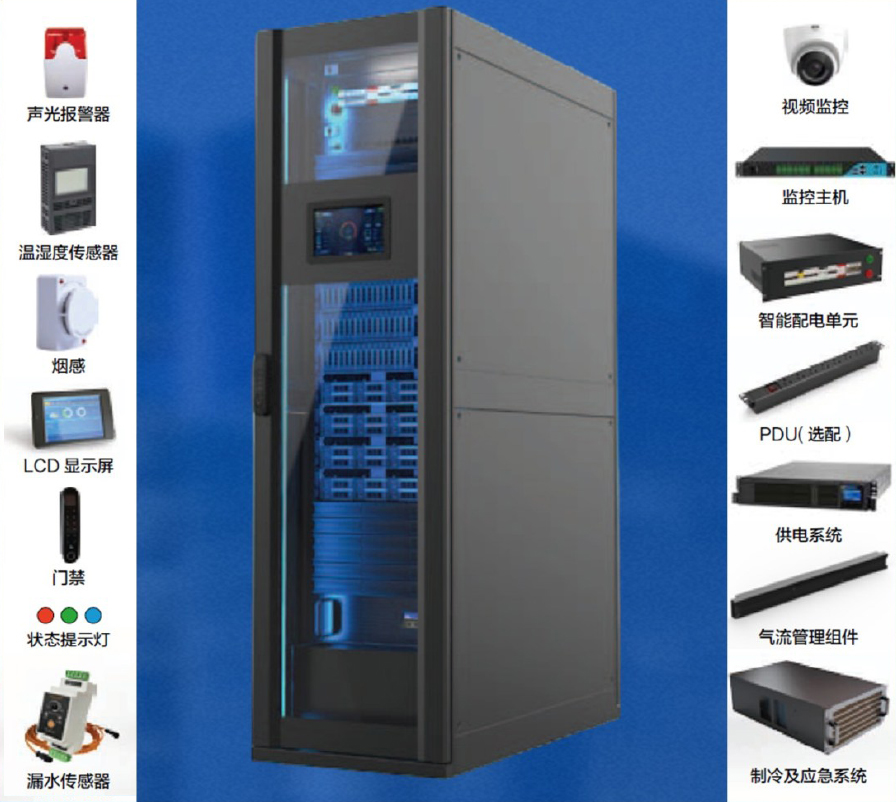

• Independent Complete System A single cabinet forms a complete independent system, and capacity expansion can be done easily and quickly by placing multiple cabinets side by side.
• Ambient Light Indication Different colored ambient lights indicate the temperature and humidity inside the aisle as well as the overall safety status.
• Cold and Hot Aisle Fully enclosed cold and hot aisles to improve cooling efficiency.
• Pop-up Door Function The front door is equipped with a pop-up mechanism, which automatically opens in case of air conditioner failure.

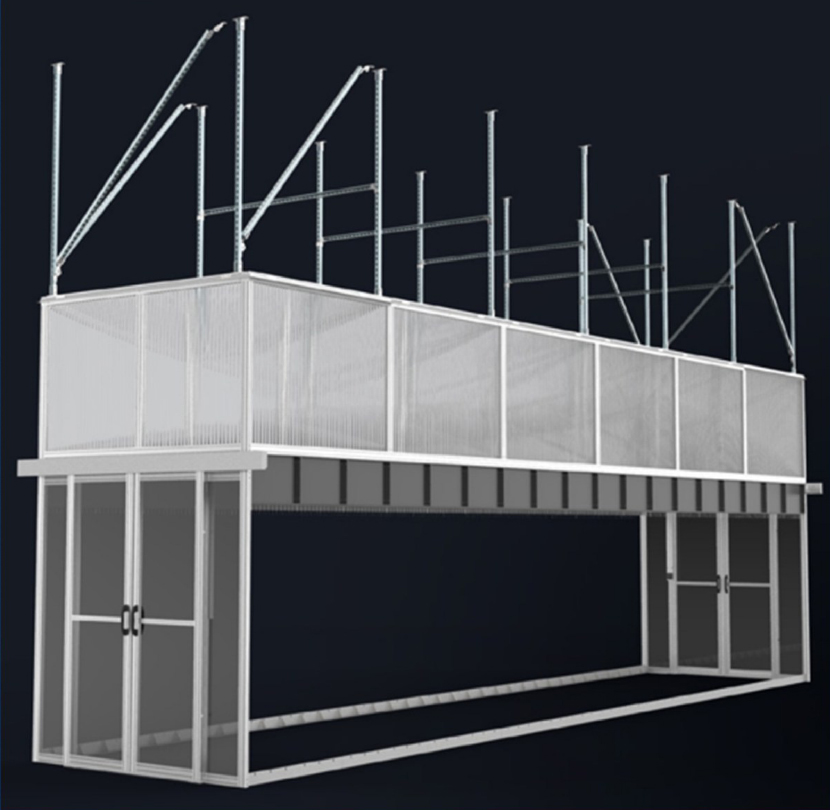

Suspended Prefabricated Hot Aisle

The suspended enclosed hot aisle consists of hanging assemblies, seismic supports, aluminum alloy frame assemblies, aisle doors, adapter plates, brush strips and their sealing accessories.
The hanging assemblies are assembled from one-time rolled C-shaped steel or U-shaped steel, and the top is fixed to the floor slab with height-adjustable connecting plates.
Three-sided diagonal bracing seismic supports are installed at both ends of the suspended aisle to ensure the overall strength of the hanging system in vertical and horizontal directions.
The frame is made of 6063-T5 aluminum alloy (natural color anodized) with cross-section complying with national standards. The inner baffles of the frame adopt double-layer hollow fireproof sun panels with an air layer in the middle, having a heat transfer coefficient less than 4.5W/(m²·K). The aisle door adopts a double sliding J-shaped structure to enhance strength and stability. Magnetic attraction is equipped when the left and right doors are closed to improve the airtightness of the aisle.
